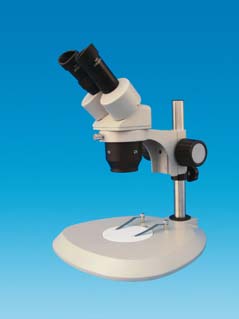

STM Series Turret-type Stereo Microscopes
Brief Introductions:
STM100 series turret-type stereo microscopes, according to combinational magnification, have three types, STM112, STM113, STM124. It is characterized by unique optical design, over long working distance, large depth of fields, horizontal axial drive control knobs, easy operation. It can be extensively used in researching mineral specimen, assembling precision components, industry product line and fine test.
STM300 series turret-type stereo microscopes, according to combinational magnification, have three types, STM312, STM313, STM324. It is characterized by vertical rotating zoom, position precision, focusing best, high eye point and wide field eyepieces. Especially it can be long used in industry product line.
Instrument Features:
Technical Specifications
Main data:
● Zoom driver: STM100 series: Horizontal axial drive control knobs; STM300: vertical axial drive rotating knobs
● With high eye point and wide field eyepiece SWH10X (Φ23mm), the diameter of fitting: Φ30mm
● Objectives: 1X/2X、1X/3X、2X/4X,working distance: 105mm
● Total magnification: 10X/20X,10X/30X,20X/40X (standard outfits)
● Interpupillary distance adjustment range: 52mm~76mm
● Diopter adjustment: ±6°(left drawtube)
● Focusing range: 100mm (round post is 50mm)
● The diameter of the round post: Φ25mm
● The measurement to match between the support and the main body is Φ76mm
● The distance between from the post center to the main body center is 140mm
● The diameter of the center working stage is Φ95mm
● Illuminators: the low illuminator is the transmitted illumination of the fluorescent lamp (5W),the up illuminator is the reflect illumination of the halogen lamp(6V、10W)
Technical data:
Model |
Objective |
Eyepiece | |||
Total
Magnification |
Diameter
of visual field |
Total
Magnification |
Diameter
of visual field | ||
SWH10X |
WF15X | ||||
STM112
STM312 |
1X
2X |
10X
20X |
23
11.5 |
15X
30X |
17
8.5 |
STM113
STM313 |
1X
3X |
10X
30X |
23
7.7 |
15X
45X |
17
5.7 |
STM124
STM324 |
2X
4X |
20X
40X |
11.5
5.7 |
30X
60X |
8.5
4.3 |
|
WF20X |
WF30X | |||
STM112
STM312 |
1X
2X |
20X
40X |
14
7 |
30X
60X |
9
4.5 |
STM113
STM313 |
1X
3X |
20X
60X |
14
4.7 |
30X
90X |
9
3 |
STM124
STM324 |
2X
4X |
40X
80X |
7
3.5 |
60X
120X |
4.5
2.25 |
