Technical Specifications
Technical Function and Characteristics:

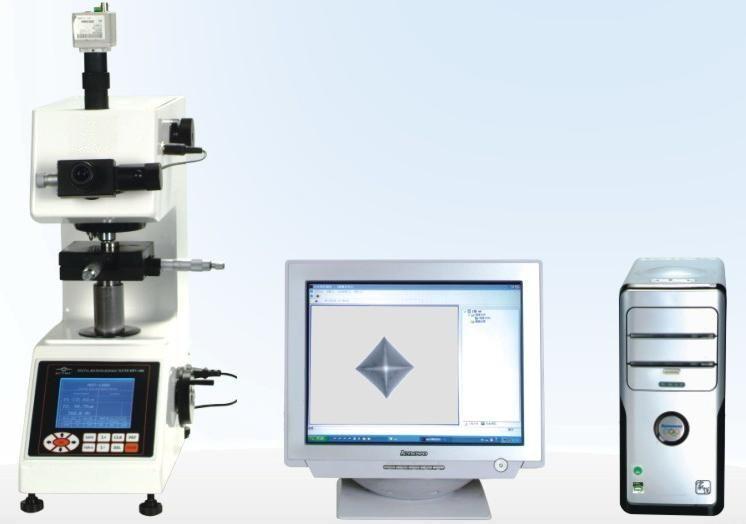

Measuring and control system of the tester adopts high-resolving power image device to display indentation clearly on the screen of computer.
Transformed signal by software. automatically measure hardness value of testing indentation.
According to the process of point testing and continuously testing, it makes out the curve drawings of depth and trapezium.
Support WIN9X、WINNT、WIN2000、WINXP etc, operating system
It can test micro Vickers, Knoop, carburized layers etc.
Hardness value can be automatically exchanged with many methods.
According to your requirement, you can select high power or low power objective.
Definition of image : >540.
It can adjust contrast and brightness etc, of indetationimage. image.
It can dispose image file and data file to open, memory, print etc.
It can look into the data file and image file at any time , Data file is printed to adopt table format and curvilinear format.
The Computer Automatic Measuring System can also be equipped on various models of our serial Digital Brinell Micro Vikers Hardness Testers such as DHV1000、XHV1000、MHV-1000 and HVS/5、10、30、50.
Besides standard accessories of original base instrument, this tester also equipped with special tube camera, Computer, Printer etc.
